High Precision Nested Overlapping Clutch Wave Springs Wave Pad For Motor

Name: High Precision Nested Overlapping Clutch Wave Springs Wave Pad For Motor
Brand: lisprings
Price: 1 USD

Brand Name : lisprings

Model Number : NST

Certification : ISO9001 TS16949

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Supply Ability : 10000000

Delivery Time : 7 work days

Packaging Details : Bulk packaged or Customize

Name : Nested Overlapping Clutch wave springs

Size : 5mm-1000mm

Tooling Charge : Free

Used For : motor

Material : Carbon steel or Stainless Steel

Stock : More than 900 Types

Contact Now

High Precision Nested Overlapping Clutch wave springs Wave pad manufacturers for motor

Description:

Nested Wave Springs are pre-stacked in parallel from one continuous filament of flat wire. The need to stack individual springs for higher loads is no longer necessary. Nested springs result in a spring rate that increases proportionally to the number of turns. They can exert tremendous forces, yet maintain the precision of a circular-grain wave spring. In many applications, Nested Wave Springs replace Belleville Springs, particularly in cases where a high but accurate force is needed.

Specification:

Material	OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 - 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 , Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc
Processing Steps	Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing
Finish	Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc
Applications	For aerospace, automotive, medical, off-highway, oil & gas , Wind power ,Consumer Industrial
Primary Competitive Advantage	•Over 3000 types Wave springs and Spiral rings standard parts in stock •Prompt Delivery Quality Approvals •Service Sample Available •We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings •We make the Product as your samples or your design fully •We have strong researching and developing team to solve Product problem •There are lot of raw material suppliers around our factory We supply high quality Productfor many world famous companies •Our factory got ISO 9001 and IATF16949 certificate •Small trial orders can be accepted, free sample is available •Our price is reasonable and keep top quality for every clients

Wave spring measurements:

High Precision Nested Overlapping Clutch Wave Springs Wave Pad For Motor

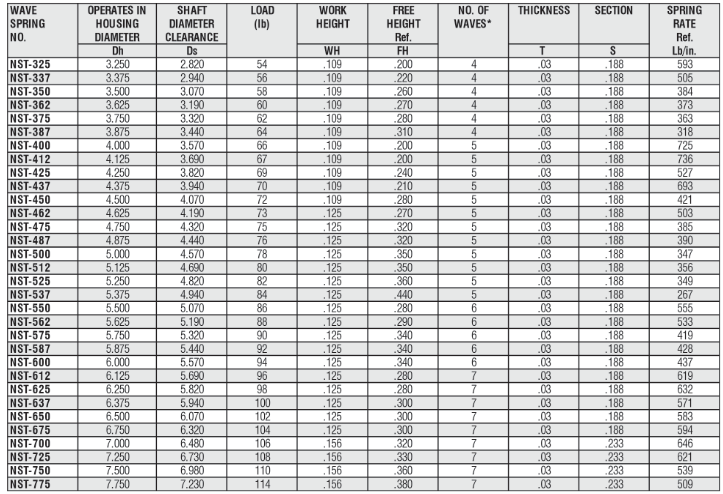

Specification:

High Precision Nested Overlapping Clutch Wave Springs Wave Pad For Motor
